Semrock拉曼濾光片 |
|
| · RazorEdge截止拉曼濾光片
· RazorEdge二向色鏡 · StopLine陷波濾光片 · EdgeBasic經濟型截止拉曼濾光片 · MaxLine激光純化濾光片 |
|

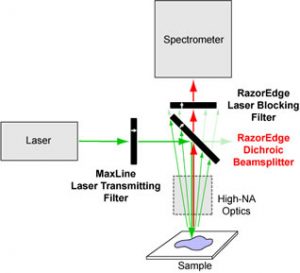

| Semrock公司RazorEdge系列截止濾光片用于拉曼實驗的瑞利散射截止，可以實現低波數斯托克斯探測。Semrock還推出了RazorEdge Dichroic系列拉曼二向色鏡，簡化了拉曼實驗的光路，搭配截止拉曼濾光片被廣泛的應用于拉曼探頭中。除此之外，對于正反斯托克斯進行同時探測的拉曼實驗，Semrock的StopLine陷波濾光片也可以輕松勝任；對于非低波數探測的拉曼實驗，可采用Semrock的EdgeBasic系列截止拉曼濾光片。針對很多激光器存在的光譜純度不足的情況，Semrock還推出了MaxLine系列窄帶激光純化濾光片，有效的減小了激光器雜峰對于拉曼信號的串?dāng)_。 | |
RazorEdge長通拉曼濾光片（常用波長）
| 型號 | 過渡帶寬 |
| LP03-325RE-25 LP03-325RU-25 |
< 153 cm-1 < 305 cm-1 |
| LP02-355RE-25 LP02-355RU-25 |
< 140 cm-1 < 279 cm-1 |
| LP02-407RU-25 | < 243 cm-1 |
| LP03-458RE-25 LP03-458RU-25 |
< 109 cm-1 < 216 cm-1 |
| LP02-473RE-25 LP02-473RU-25 |
< 105 cm-1 < 209 cm-1 |
| LP02-488RE-25 LP02-488RU-25 |
< 102 cm-1 < 203 cm-1 |
| LP02-514RE-25 LP02-514RU-25 |
< 97 cm-1 < 192 cm-1 |
| LP03-532RE-25 LP03-532RU-25 |
< 90 cm-1 < 186 cm-1 |
| LP02-561RE-25 LP02-561RU-25 |
< 89 cm-1 < 176 cm-1 |
| LP02-633RE-25 LP02-633RU-25 |
< 79 cm-1 < 156 cm-1 |
| LP02-638RE-25 LP02-638RU-25 |
< 78 cm-1 < 155 cm-1 |
| LP02-785RE-25 LP02-785RU-25 |
< 63 cm-1 < 126 cm-1 |
| LP02-808RE-25 LP02-808RU-25 |
< 62 cm-1 < 123 cm-1 |
| LP02-830RE-25 LP02-830RU-25 |
< 60 cm-1 < 119 cm-1 |
| LP02-980RE-25 LP02-980RU-25 |
< 51 cm-1 < 101 cm-1 |
| LP02-1064RE-25 LP02-1064RU-25 |
< 47 cm-1 < 93 cm-1 |
RazorEdge低通拉曼濾光片
| 型號 | 過渡帶寬 |
| ? SP01-532RU-25 | ? 186 cm-1 |
| ? SP01-561RU-25 | ? 176 cm-1 |
| ? SP01-633RU-25 | ? 160 cm-1 |
| ? SP01-785RU-25 | ? 129 cm-1 |
RazorEdge拉曼二向色鏡
| 型號 | 過渡帶寬 |
| LPD01-355RU | < 279 cm-1 |
| LPD02-488RU | < 203 cm-1 |
| LPD02-514RU | < 192 cm-1 |
| LPD02-532RU | < 186 cm-1 |
| LPD02-633RU | < 156 cm-1 |
| LPD02-785RU | < 126 cm-1 |
| LPD02-830RU | < 119 cm-1 |
| LPD02-1064RU | < 93 cm-1 |
StopLine陷波濾光片
|
型號
|
激光波長nm | 帶寬 | OD |
| NF03-405E-25 | ? 405 |
??9 nm
|
? > 6 @ 405 nm |
| NF03-488E-25 | ? 488 |
? 14 nm
|
? > 6 @ 488 nm |
| NF03-514E-25 | ? 514 |
? 16 nm
|
? > 6 @ 514.5 nm |
| NF01-532U-25 NF03-532E-25 |
? 532 |
? ?17 nm
|
??> 6 @ 532 nm |
| NF03-561E-25 | ? 561 |
? 19 nm
|
??> 6 @ 561.4 nm |
| NF03-594E-25 | ? 594 |
? 21.8 nm
|
? > 6 @ 594.1 nm |
| NF03-633E-25 | ? 633 |
??25 nm
|
? > 6 @ 632.8 nm |
| NF03-658E-25 | ? 658 |
? 27 nm
|
? > 6 @ 658 nm |
| NF03-785E-25 | ? 785 |
? 39 nm
|
? > 6 @ 785 nm |
| NF03-808E-25 | ? 808 |
? 41 nm
|
? > 6 @ 808 nm |
EdgeBasic經濟型長通拉曼濾光片
| ?型號 | 過渡帶寬? | 透過率及范圍? |
| ??BLP01-325R-25 | ? 750.5 cm-1 | ? >93%? 334.1 – 900.0 nm |
| ? BLP01-355R-25 | ? 687 cm-1 | ? >93%? 364.9 – 900.0 nm |
| ? BLP01-364R-25 | ? 670 cm-1 | ? >93%? 374.0 – 900.0 nm |
| ? BLP01-405R-25 | ? 595 cm-1 | ? >93%? 421.5 – 900.0 nm |
| ? BLP01-442R-25 | ? 552 cm-1 | ? >93%? 454.0 – 900.0 nm |
| ? BLP01-458R-25 | ? 552 cm-1 | ? >93%? 470.7 – 900.0 nm |
| ? BLP01-473R-25 | ? 515 cm-1 | ? >93%? 486.2 – 900.0 nm |
| ? BLP01-488R-25 | ? 497 cm-1 | ? >93%? 504.7 – 900.0 nm |
| ? BLP01-514R-25 | ? 474 cm-1 | ? >93%? 529.4 – 900.0 nm |
| ? BLP01-532R-25 | ? 458 cm-1 | ? >93%? 546.9 – 900.0 nm |
| ? BLP02-561R-25 | ? 434.5 cm-1 | ? >93%? 577.1 – 900.0 nm |
| ??BLP01-568R-25 | ? 429 cm-1 | ? >93%? 584.1 – 900.0 nm |
| ? BLP01-594R-25 | ? 411 cm-1 | ? >93%? 610.9 – 900.0 nm |
| ? BLP01-633R-25 | ? 385.4 cm-1 | ? >93%? 650.5 – 1200.0 nm |
| ? BLP01-635R-25 | ? 380 cm-1 | ? >93%? 660.0 – 1200.0 nm |
| ? BLP01-647R-25 | ? 377 cm-1 | ? >93%? 665.2 -1200.0 nm |
| ? BLP01-664R-25 | ? 367 cm-1 | ? >93%? 682.6 – 1200.0 nm |
| ? BLP01-785R-25 | ? 309 cm-1 | ? >93%? 812.1 – 1200.0 nm |
| ? BLP01-808R-25 | ? 302 cm-1 | ? >93%? 830.6 – 1600.0 nm |
| ? BLP01-830R-25 | ? 293.9 cm-1 | ? >93%? 853.2 – 1600.0 nm |
| ? BLP01-980R-25 | ? 248.9 cm-1 | ? >93%? 1007.4 – 1600.0 nm |
| ? BLP01-1064R-25 | ? 229 cm-1 | ? >93%? 1093.8 – 1600.0 nm |
| ? BLP01-1319R-25 | ? 184.9 cm-1 | ? >93%? 1355.9 – 2000.0 nm |
| ? BLP01-1550R-25 | ? 157 cm-1 | ? >93%? 1593.4 – 2000.0 nm |
EdgeBasic經濟型低通拉曼濾光片
| ?型號 | 過渡帶寬? | 透過率及范圍? |
| ? BSP01-532R-25 | ? 458 cm-1 | > 80% 350.0 – 400.0 nm > 93% 400.0 – 517.1 nm |
| ? BSP01-633R-25 | ? 385 cm-1 | > 80% 350.0 – 400.0 nm > 93% 400.0 – 615.1 nm |
| ? BSP01-785R-25 | ? 313 cm-1 | > 80% 350.0 – 400.0 nm > 93% 400.0 – 758.2 nm |
MaxLine激光純化濾光片
| ?型號 | 帶寬 | 透過率 |
| LL01-248-12.5 LL01-248-25 |
1.7 nm (typ)
2.2 nm (max) |
? > 40% |
| LL01-266-12.5 LL01-266-25 |
1.9 nm (typ) 2.4 nm (max) |
??> 55% |
| LL01-325-12.5 LL01-325-25 |
1.2 nm (typ)
2.3 nm (max) |
??> 80% |
| LL01-355-12.5 LL01-355-25 |
1.3 nm (typ)
2.5 nm (max)
|
? > 80% |
| LL01-364-12.5 LL01-364-25 |
1.4 nm (typ)
2.5 nm (max) |
? > 85% |
| LL01-372-12.5 LL01-372-25 |
1.4 nm (typ)
2.6 nm (max) |
? > 85% |
| LL01-407-12.5 LL01-407-25 |
1.5 nm (typ)
2.8 nm (max) |
? > 90% |
| LL01-442-12.5 LL01-442-25 |
1.7 nm (typ)
3.1 nm (max) |
? > 90% |
| LL01-458-12.5 LL01-458-25 |
1.7 nm (typ)
3.2 nm (max) |
??> 90% |
| LL01-488-12.5 LL01-488-25 |
1.9 nm (typ)
3.4 nm (max) |
? > 90% |
| LL01-491-12.5 LL01-491-25 |
1.9 nm (typ) 3.4 nm (max) |
? > 90% |
| LL01-514-12.5 LL01-514-25 |
2.0 nm (typ)
3.6 nm (max) |
??> 90% |
| LL01-532-12.5 LL01-532-25 |
2.0 nm (typ)
3.7 nm (max) |
??> 90% |
| LL01-543-12.5 LL01-543-25 |
2.1 nm (typ)
3.8 nm (max) |
??> 90% |
| LL02-561-12.5 LL02-561-25 |
2.1 nm (typ) 3.9 nm (max) |
? > 90% |
| LL01-568-12.5 LL01-568-25 |
2.2 nm (typ) 4 nm (max) |
? > 90% |
| LL01-633-12.5 LL01-633-25 |
2.4 nm (typ)
4.4 nm (max) |
? > 90% |
| LL01-647-12.5 LL01-647-25 |
2.5 nm (typ)
4.5 nm (max) |
? > 90% |
| LL01-671-12.5 LL01-671-25 |
2.6 nm (typ)
4.7 nm (max) |
??> 90% |
| LL01-780-12.5 LL01-780-25 |
3.0 nm (typ) 5.5 nm (max) |
? > 90% |
| LL01-785-12.5 LL01-785-25 |
3.0 nm (typ)
5.5 nm (max) |
? > 90% |
| LL01-808-12.5 LL01-808-25 |
3.1 nm (typ) 5.7 nm (max) |
? > 90% |
| LL01-810-12.5 LL01-810-25 |
3.1 nm (typ) 5.7 nm (max) |
? > 90% |
| LL01-830-12.5 LL01-830-25 |
3.2 nm (typ) 5.8 nm (max) |
? > 90% |
| LL01-852-12.5 LL01-852-25 |
3.2 nm (typ) 5.8 nm (max) |
? > 90% |
| LL01-976-12.5 LL01-976-25 |
3.7 nm (typ)
6.8 nm (max) |
? > 90% |
| LL01-980-12.5 LL01-980-25 |
3.7 nm (typ) 6.9 nm (max) |
? > 90% |
| LL01-1030-12.5 LL01-1030-25 |
3.9 nm (typ) 7.2 nm (max) |
? > 90% |
| LL01-1047-12.5 LL01-1047-25 |
4.0 nm (typ) 7.3 nm (max) |
? > 90% |
| LL01-1064-12.5 LL01-1064-25 |
4.0 nm (typ)
7.4 nm (max) |
? > 90% |
濾光片選型指南
