Acton紫外陷波反射濾光片

多層反射濾光片是一種全介質反射器，在特定紫外-紫外波長下具有高反射率，同時還能透過較長波長的紫外-紅外光。濾光片專為 45 度 AOI 而設計。 可定制峰值波長大于 250 nm 的紫外濾光片，其 DUV-VUV 透射率低于 ~210 nm。 注：涂層可應用于 Acton 標準基底、定制基底和客戶提供的材料 (CSM)。

Acton紫外陷波反射濾光片

Acton紫外陷波反射濾光片

VUV/UV Notch – Reflective Filters

VUV/UV Reflective Filters – 45° AOI on Acton Standard Filter Substrates

?Wavelength(nm) Peak Reflectance 1.0”Diameter 2mm thick 1.5”Diameter 2mm thick 2.0”Diameter 2mm thick
126nm ≥ 40% M126-3045-1D M126-3045-1.5D M126-3045-2D
146nm ≥ 45% M146-3045-1D M146-3045-1.5D M146-3045-2D
157nm ≥ 82% M157-3045-1D M157-3045-1.5D M157-3045-2D
172nm ≥ 82% M172-3045-1D M172-3045-1.5D M172-3045-2D
185nm ≥ 82% M185-3045-1D M185-3045-1.5D M185-3045-2D
193nm ≥ 82% M193-3045-1D M193-3045-1.5D M193-3045-2D
200nm ≥ 90% M200-3045-1D M200-3045-1.5D M200-3045-2D
208nm ≥ 90% M208-3045-1D M208-3045-1.5D M208-3045-2D
212nm ≥ 90% M212-3045-1D M212-3045-1.5D M212-3045-2D
220nm ≥ 90% M220-3045-1D M220-3045-1.5D M220-3045-2D
240nm ≥ 90% M240-3045-1D M240-3045-1.5D M240-3045-2D
248nm ≥ 90% M248-3045-1D M248-3045-1.5D M248-3045-2D
254nm ≥ 90% M254-3045-1D M254-3045-1.5D M254-3045-2D
260nm ≥ 90% M260-3045-1D M260-3045-1.5D M260-3045-2D
266nm ≥ 90% M266-3045-1D M266-3045-1.5D M266-3045-2D
280nm ≥ 90% M280-3045-1D M280-3045-1.5D M280-3045-2D
300nm ≥ 90% M300-3045-1D M300-3045-1.5D M300-3045-2D
320nm ≥ 90% M320-3045-1D M320-3045-1.5D M320-3045-2D
340nm ≥ 90% M340-3045-1D M340-3045-1.5D M340-3045-2D
352nm ≥ 90% M352-3045-1D M352-3045-1.5D M352-3045-2D
360nm ≥ 90% M360-3045-1D M360-3045-1.5D M360-3045-2D

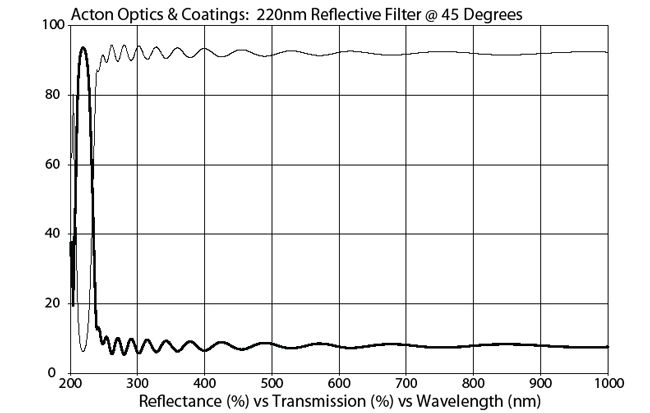

典型曲線

Acton紫外陷波反射濾光片

濾光片尺寸

NOTE: Filters are supplied open-faced unless otherwise specified
* 2.0“ Diameter 122-157nm filters are 5mm thick

Unmounted
Filter
Diameter		 Diameter
Tolerance		 Mounted Filter
Diameter ±0.005”		 Unmounted
Filter
Thickness		 Mounted Thickness Clear
Aperture
0.5” (12.7mm) +0.00”/-0.005” (0.127mm) 0.625” (15.88mm) 0.079″ (2mm) 0.300” (7.62mm) 0.450” (11.43mm)
1.0” (25.4mm) +0.00”/-0.005” (0.127mm) 1.200” (30.48mm) 0.098″ (2.5mm) 0.375” (9.53mm) 0.800” (20.32mm)
2.0” (50.8mm) +0.00”/-0.005” (0.127mm) 2.225” (56.52mm) 0.197″ (4mm) 0.500” (12.7mm) 1.900” (48.26mm)

濾光片材料

Wavelengths < 140nm 140-169nm 170-320nm
Substrate Material VUV MgF2 VUV CaF2 UV Grade Fused Silica
